IEC規格3×10mm,FAST-ACTING GLASS TUBE FUSE
Ø3×10mm（BF系列）保險絲規格書
1.適用范圍:  本規格書所述電氣和機械要求適用于小型玻璃管熔斷體, 采用的標準為IEC-127
             和與之等效的GB-9364標準。
2.產品特性: BF—快熔斷型(Fast Acting)

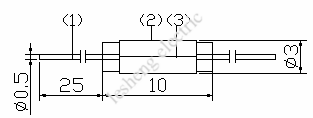

3.外形尺寸:

4.結構STRUCTURE:
(1) LEAD: TINNED COPPER WIRE
(2) BODY: GLASS TUBE
(3) WIRE: ALLOY
5.熔斷特性:

% of Rating	135%	200%
100mA–7A	Max.1 Hour	Max.60 Sec.

6.公稱冷電阻，熔化熱能值和損耗功率:

額定電流	分?jǐn)嚯娏?/td>	額定電壓(AC)	熔化熱能值
100 mA	35A	125V/250V	0.05
125 mA	35A	125V/250V	0.09
160 mA	35A	125V/250V	0.06
200 mA	35A	125V/250V	0.51
250 mA	35A	125V/250V	0.80
315 mA	35A	125V/250V	0.70
400 mA	35A	125V/250V	1.38
500 mA	35A	125V/250V	1.87
630 mA	35A	125V/250V	2.09
800 mA	35A	125V/250V	3.60
1.0 A	35A	125V/250V	3.00
1.25 A	100A	125V/250V	4.50
1.6 A	100A	125V/250V	10.0
2.0 A	100A	125V/250V	27.0
2.5 A	100A	125V/250V	31.0
3.15 A	100A	125V/250V	41.0
4.0 A	200A	125V	63.0
5.0 A	200A	125V	97.0
6.3 A	200A	125V	161.0
7.0 A	200A	125V	161.0

7.耐久性試驗： 1、通以1.2倍交流額定電流1小時, 然后切斷15分鐘, 將該循環重復100次, 通以1.5倍交流額定電流1小時;2、電壓降增大量不大于試驗前測得值的10%.
8.溫度特性TEMPERATURE CHARACTER:
When 100% of rating the temperature rise doesn’t exceed 75℃
9.安全認證:
10.Safety Approvals:(安全認證):
